Product Description
Features :

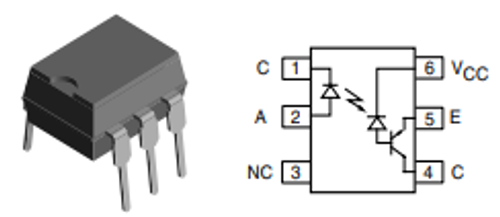

• High Speed Optocoupler without Base Connection
• Isolation Test Voltage: 5300 VRMS
• GaAlAs Emitter
• Integrated Detector with Photo diode and Transistor
• High Data Transmission Rate: 1.0 MBit/s
• TTL Compatible
• Open Collector Output
• CTR at IF = 16 mA, VO = 0.4 V, VCC = 4.5 V, Tamb = 25 °C: ≥ 19 %
• Good CTR Linearity Relative to Forward Current
• Low Coupling Capacitance
• dV/dt: typ. 10 kV/µs
• Lead-free component
• Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC
Applications :
IGBT Drivers
Data Communications
Programmable Controllers
